• 1. Drawing solid polygons from scratch ("glBegin(GL_POLYGON)" in OpenGL)
• 2. Filling in a hollow or existing solid polygon
  • akin to "paint fill" tool in Photoshop

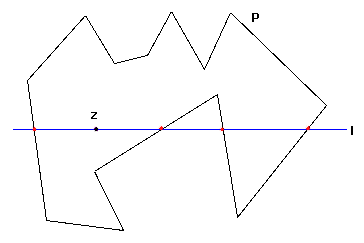

Polygon interior test

• Question: given a point P and a simple polygon, is P inside or outside the polygon?
• To determine this, use the Parity Test:
  • draw a horizontal line from P to -infinity (ie. as long as necessary)
  • count the number of times the line cuts through an edge of polygon
  • odd # times? --> P is interior
  • even # times? --> P is exterior

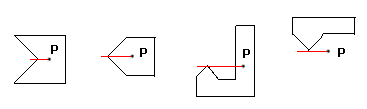

Polygon interior: special cases

• what if line passes through horizontal edge? --> Collapse it!

• What if line passes through a vertex (other than horiz. line)?

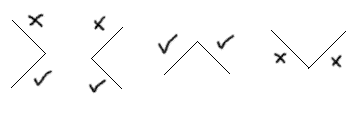

• Count incremented for vertex intersections as follows, depending on orientation:

• Counts: 1, 1, 2, 0 respectively

Scan converting solid polygons

• We will concern ourselves with simple polygons
  • OpenGL will handle non-simple ones, with sometimes unexpected results

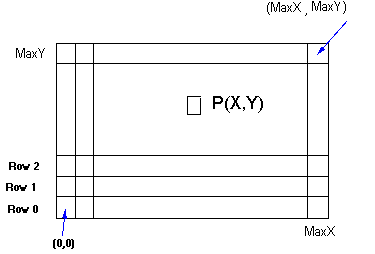

• First, find edge with minimum Y coord --> call it Ymin
• find edge with max. Y coord --> Ymax

• For Y = Ymin to Ymax
  • find intersections of Y with all edges of polygon
  • sort these intersections in increasing X values
  • use parity check to draw (fill) those regions at Y that are in the interior

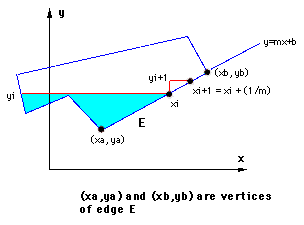

• Note: computing intersection is expensive: X = (Y - y0)/m + x0
• better solution: for each edge, save where next X intersection will occur based on last X intersection value obtained
• So, for each edge of polygon:
  • save inverse of slope: minv = 1/m (compute once per edge)
  • ie. minv = (delta X)/(delta Y) = (1/m) (m is the slope)
  • save the previous X intersection coordinate obtained
• In scan converting loop, use this expression to find intersection quickly:
  • X_intersection = X_OldInter + minv
• Need a data structure to be used by scan conversion routine:
  • Keep track of edge-specific data, eg. minv, endpoints, etc.

Filling Polygons

• Given: a solid or hollow polygon on the screen
• Task: fill it with a different colour

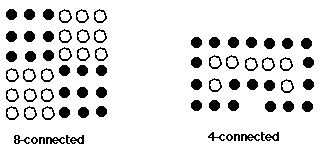

• Connectivity

• 4-connected: every 2 pixels are joined in up, down, left, right directions
• 8-connected: ditto, but including diagonal directions too

• Boundary-defined region: largest connected region of pixels for a starting pixel P, whose value is not some boundary value B
• Interior-defined region: largest connected region for starting pixel P that has same value as P

• 1. Flood fill: fill interior-defined region
• 2. Boundary fill: fills boundary-defined region

• Algorithms are very simple.
  • weakness: highly recursive, so they can use up stack space fast
  • solution: optimize recursive calls

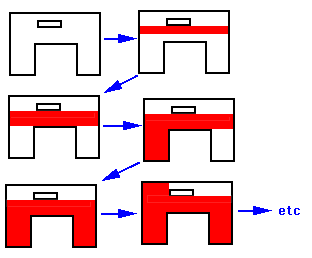

• appearance: fill colours recursively fill up interiors, moving around nooks and crannies

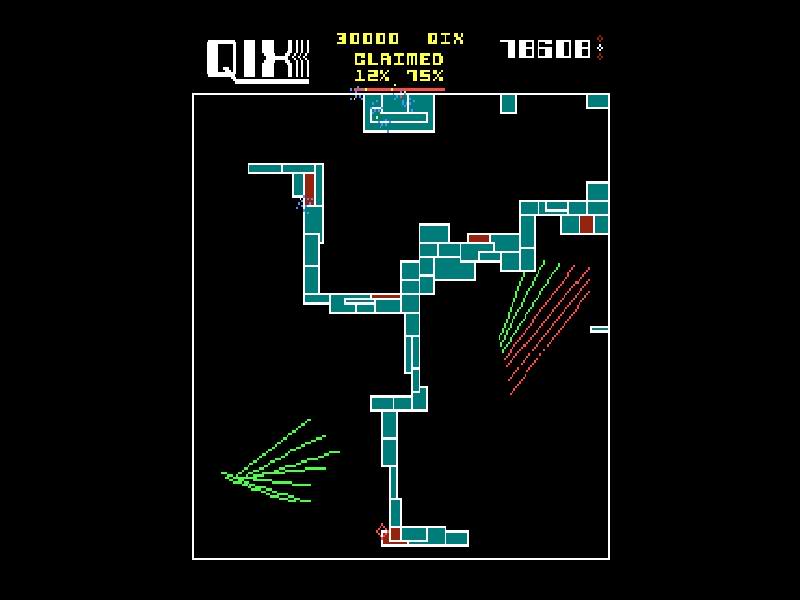

• Example: the 1981 arcade game QIX, that does polygon filling...


  Screen dump. (from classicarcadegaming.com)

Floodfill

• (x,y) is an interior point given to routine...

FloodFill(x, y, oldColour, newColour) {
   if (readPixel(x, y) == oldColour) {
      writePixel(x, y, newColour);
      FloodFill(x, y-1, oldColour, newColor);
      FloodFill(x, y+1, oldColour, newColor);
      FloodFill(x-1, y, oldColour, newColor);
      FloodFill(x+1, y, oldColour, newColor);
   }
}

Boundary Fill

BoundaryFill(x, y, boundaryColour, newColour) {
   c := readPixel(x, y);
   if (c <> boundaryColour and c <> newColour) {
      writePixel(x, y, newColour);
      BoundaryFill(x, y-1, oldColour, newColor);
      BoundaryFill(x, y+1, oldColour, newColor);
      BoundaryFill(x-1, y, oldColour, newColor);
      BoundaryFill(x+1, y, oldColour, newColor);
   }
}

Pattern filling

• Given an M x N bitmap (pixmap):
  • (i) draw a solid polygon with that pattern
  • (ii) fill an existing polygon with pattern
• To do this, use previous solid drawing/filling algorithms, but use the bitmap to determine what you draw at each pixel

• issue: where to start (anchor) the pattern?
  • (a) a set corner of polygon (eg. rectangle corner?) (pattern stationary wrt poly.)
  • (b) screen origin? pattern is stationary wrt screen/window
  • (c) graphics window origin?

• Transparent bitmap: see through 0's, else draw colour; anchor at world coordinates
  • if pattern[ x mod M, y mod N] then write_pixel(x,y, pattern[ x mod M, y mod N])

• Opaque pixmap: draw colour set in pixmap, anchor at world coordinates
  • write_pixel(x, y, pattern[x mod M, y mod N ])

• Anchor at corner (x1, y1) of polygon:
  • write_pixel(x, y, pattern[(x-x1) mod M, (y-y1) mod N ])

Scan converting circles

• Circle equation:

R^2 = X^2 + Y^2

Y = +/- sqrt(R^2 - X^2)

• A. Simple:

glBegin(GL_POINTS);
loop x=0 to R {
   y = sqrt(r*r-x*x);
   v2i(x, y);
   v2i(x, -y);
   v2i(-x, y);
   v2i(-x, -y)
glEnd();

• Problems: expensive; dots printed (use lines for solid circumference); undercomputes some portions due to uneven sampling
• B. Variation:

glBegin(GL_POINTS);
loop A=0 to 90 {
   x = R * cos(A);
   y = R * sin(A);
   v2i(x, y);
   v2i(x, -y);
   v2i(-x, y);
   v2i(-x, -y);
}
glEnd();

• circumference evenly computed, but more expensive (sin, cos... ouch!)

Circles

• C. Enhancement: compute one 45 degree segment, and copy mirrors
  • cuts down math computations by half

• D. Bresenham's: Use midpoint approach (like line alg)
• E. Splines

Clipping

• clipping: only scan convert pixels within a certain region (eg. window)
• graphics hardware has to do this too, to avoid writing to illegal memory locations
• Three ways:

1. Brute force: "scissoring"
   • test each pixel as its about to be drawn to see if its within bounds or not
   • can be efficient if hardware supported
2. Analytically: compute the new geometry of clipped line or polygon
   • line: compute new endpoints
   • polygon: compute new polygon(s) vertices and edges
3. Generate entire drawing on a scratch canvas, and then cut and copy visible portion to the screen
   • simple to do (especially for text), but wasteful

Clipping lines

• Note: polygons are produced from lines, so they can be clipped edge by edge by clipping lines
• many specialized approaches
• clipping points:

• if point not in range, don't plot it
• could do this test for anything you draw

Clipping lines

A. Find new endpoints that intersect window boundary lines

• if both line endpoints within window, then leave as is
  • else find new endpoint(s) on window boundary
• because window boundaries are really line segments (not infinite line) use parametric equations
• line endpoints (x0, y0) & (x1, y1):
  • x = x0 + T (x1-x0)
  • y = y0 +T (y1-y0)
  • ( 0 =< T =< 1 )
  • Then: set parametric equations for each of 4 window boundaries
  • set parametric equation for line segment
  • solve for x, y, T edge , T line for each boundary + line
  • if T edge and T line both between 0 and 1, then intersection has occurs
• ---> very expensive: lots of division & multiplication when solving 4 sets equations

Clipping Lines

B. Cohen-Sutherland

• fast approach: trivial accept/reject done quickly
• 4 bit code for each endpoint of line segment
• bit represents sign of following, where 1 is negative, 0 is positive
• for one endpoint (X, Y), bit code is: b1 b2 b3 b4
  (above, below, right, left)
  • b1: sign of (Ymax - Y)
  • b2: sign of (Y - Ymin)
  • b3: sign of (Xmax - X)
  • b4: sign of (X - Xmin)

• if both codes are 0000, line is within window -- don't clip
• do a logical AND for codes for each initial endpoint:
  • --> if not equal 0000 then line cannot be in window: ignore it!
• Else iterate:
  • find one bit set to '1'
  • eg. 1st bit: then Y > Ymax
  • intersect line with Ymax: x = x0 + (1/m) * (Ymax-y0)
  • replace old endpoint with this new computed boundary endpoint

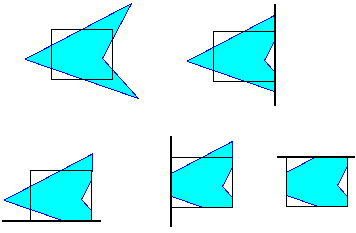

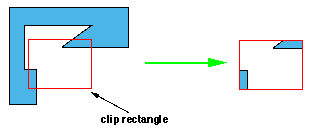

Clipping polygons

• A polygon is defined by a set of edges (line segments)
  • you can apply line clipping to each edge
  • but you still need to redefine the clipped polygon (sometimes more than one polygon can be created when clipping)

• to clip polygons, we need to clip all four sides of the window

Antialiasing

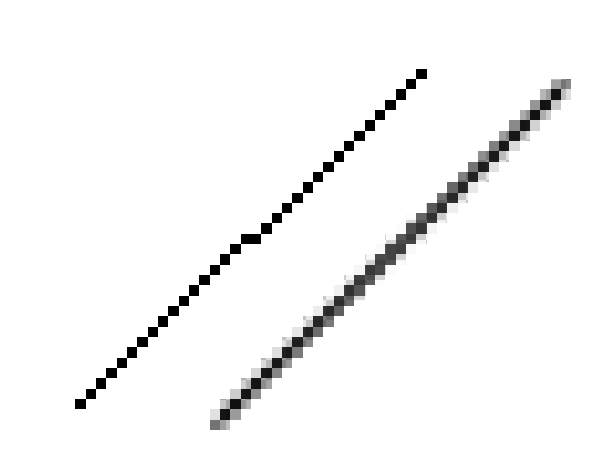

• Aliasing: a sampling error caused by representing a continous quantity with discrete signals
  • eg. representing a mathematical line using pixels --> "Jaggies"

  • if pixel center covered, turn on; else turn off
• Antialiasing: minimize effects of aliasing
  • eg. graduate the edges of lines to minimize staircasing

• note that a line to be drawn on screen is really a rectangle with an area (can't have perfect line!)
• pixels also have areas: they are squares

• Types of antialiasing...
  1. Pre-filtering

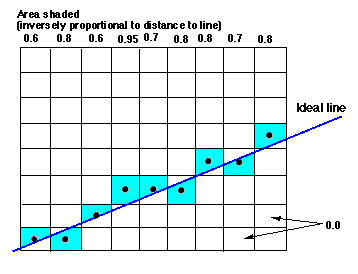

     • unweighted area sampling: to antialias the line, draw each pixel covered
       by this line rectangle with an intensity proportional to the area of the pixel covered
       • If distance greater than pixel square's width, then ignore it (it has area intensity of 0)
     • weighted area sampling: distance from pixel centre to the line (pixels define circles)



  2. Supersampling: compute scan conversion than higher resolution than display
     • then average 9 surrounding pixels. (3D rendering technique, eg. Bryce)
  3. Post-filtering: weight matrix on rendered image.
     • But this blurs all pixels, and not just anti-aliased ones).

References:

• Computer Graphics Principles and Practice, Foley, van Dam, et al, Addison Wesley 1990, ISBN 0-201-12110-7.
