7. Hidden Line Removal

Brock University
COSC 3P98 Computer Graphics
Instructor: Brian J. Ross

Hidden line and surface removal

• OR visible line and surface determination (chapter 16)
• we have polygon faces defined for our object; we need to draw these faces so that faces in front overwrite faces in the back

• this is a central problem in graphics and computational geometry: speed!
• various algorithms devised which are suited to different needs and devices
  • eg. a video technique may differ substantially from that for a pen plotter

Hidden lines and surfaces

• algorithms fall into 2 categories:
• 1. image-precision (device-precision) algorithms: work on a pixel basis by determining visibility at each pixel
  • "sampling": samples object geometry at device-dependent increments
  • algorithm complexity proportional to device resolution
  • because of sampling, can get aliasing problems (ie. "jagged line" error)
• 2. object-precision algorithms: determine visibility via the geometry of the model
  • "continuous": finds most precise answers as possible
  • compares n graphical objects with each other: n*n complexity
  • however, more complex mathematics, so this is usually slower than image precision

Types of algorithms

1. Visible-line determination: examine edge geometry, and determine edge segments that are visible or are hidden
2. Z-buffer: device-precision algorithm that records the visible object found at each pixel
3. List priority algorithms: object-precise algorithms that sort objects such that when drawn in that order, a correct rendering of hidden surfaces occurs
4. Scan-line algorithms: image-precise algorithms that determine visibility one scan-line at a time
5. Area subdivision algorithms: divide-and-conquer applied to object areas
6. Ray tracing: determine visible object by tracing line from user eye to each pixel in scene

... and others

Coherence

• some general principles apply to ALL computer graphics algorithms
• coherence: degree to which parts of object exhibit local similarities
• most parts of the objects in a drawing are more similar than not
  • if you account for this, then changes can be done incrementally & therefore quickly
• face coherence: face shading is gradual
• scan line coherence: each scan line typically changes little from those above and below it
• area coherence: adjacent pixels are typically on the same face
• frame coherence: in animation, each frame differs very slightly from previous frame
• many hidden line techniques exploit these facts

Hidden line removal

• if you are drawing wireframes, then the hidden line problem is to find the lines or line segments that are obstructed by interceding polygons, and not draw them in full or part
• eg. functions of 2 variables: y = f(x,z)
• simple approach: for constant z values, compute values at x intervals, and draw lines between
  • need to remove line portions that are obstructed

• Quick + dirty: if on a CRT, then start at min z value, compute y's for x's and z, rotate & convert to 2D (screen coordinates), and draw it
  • works from screen top to bottom, left to right
  • but each time you draw a new y value, erase everything BELOW that point
  • effectively removes obstructed parts of drawing
  • disadvantage: won't work for plotters (cannot erase lines!), and won't work for x-y meshes
• Other algorithms (e.g. horizon line algorithm) are more general.

Hidden surfaces

• hidden line algorithms above are for functions on surfaces
• the more general problem is when you have assorted volumes in 3D space
  • these volumes are not necessarily mathematical functions
• general problem:
  • given points P1=(x1,y1,z1), P2=(x2,y2,z2) are P1 and P2 on same projector to viewers eye?
  • and if so, which one is closer (ie. the one the eye sees) and should be drawn?
• note that this takes into account perspective, as well as colouring, shading, etc, since we draw the actual colour of that object point
• hidden surface detection done after model is transformed and perspective applied
  • parallel projection: compare projections (x1, y1) and (x2, y2)
  • perspective projection: apply perspective scaling t', and then compare points (x1', y1') and (x2', y2')
• different algorithms attempt to make this comparison as efficient as possible
  • eg, prune the # of points/surfaces to compare

Efficiency techniques

• a) perform volume clipping: then less objects to compare

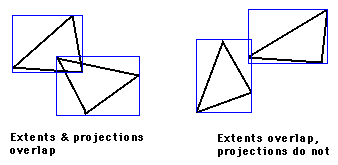

• b) check if object extents overlap
  • object extent: the minimum and maximum screen X and Y values
  • a quick way to disregard hidden line checking

Efficiency:

• c) back-facing polygon elimination:
• polygon normal: the perpendicular ray (direction) from the plane containing the polygon
• the equation of this plane determines the side of plane that normal points in graphics, useful to make the normal point towards the front of the poly.
  • if an object defined in terms of planar polygons, and if the object is closed, then we can then disregard drawing polygons whose normals are pointing away from user (neg values)
  • graphics routines: compute normal for the polygon; if it points towards user then use it; otherwise ignore it

Backface elimination

• this can be expensive: have to compute normal's direction wrt user eye
• however, there's a trick: when you use simple convex planar polygons, then you can use right-hand rule to determine direction of normal
• define the polygon edges in a counterclockwise order
• when you wrap right hand fingers in this direction, thumb points at front normal
• then, the graphics routine simply checks if the polygon being drawn is being done so in a counterclockwise fashion
  • --> if yes, it is a front-facing one; if not, it is back-facing

• Quick mathematical way to determine it:
  • use sign of Z-component of cross product of 2 polygon edges, selected via CCW ordering of vertices.


  • --> if positive: facing towards viewer
  • --> if negative : facing away from viewer

• OpenGL:
  • glFrontFace(GL_CCW); (or GL_CW)
    • specifies clockwise or counterclockwise
  • glCullFace(GL_BACK); (or GL_FRONT)
    • specifies back or front facing culling
  • glEnable(GL_CULL_FACE);
    • turns backface elimination on
  • significant speedup: cuts number of polygons to process by half
  • make sure that you define your polygons in counterclockwise direction if GL_CCW set
  • (if you see very little of object, you've defined polygon's in clockwise

Z Buffering

• z buffering (or depth buffering) is one of the simplest hidden surface algorithms
• via hardware or software, an extra "z" buffer is maintained along with frame buffer. It keeps track of the distance to nearest object at each pixel location.
• initialized to minimum z value (eg. most negative)
• then, when object being drawn, if its z coordinate at a point is greater (more positive, less distance to viewer) than z buffer value, it is drawn, and new z coord is saved; otherwise, it is not drawn
• if a line seg in 3D is being drawn, then the intermediate z values between endpoint z coords are interpolated: linear interpolation for polygons, and can compute z for more complex surfaces
• some problems:
  • aliasing: limited to size of z buffer word per pixel; can have imprecision at extremely far distances --> important to have as small a viewing volume as possible
• possible to write into and manipulate z buffer memory directly, eg. cursors


Z buffer

OpenGL: Z buffer

• graphics cards directly support z buffer
• initialize (GLUT):

glutInitDisplayMode(GLUT_RGB | GLUT_SINGLE | GLUT_DEPTH);
glEnable(GL_DEPTH_TEST);

• To use: clear the Z-buffer whenever a new frame is to be drawn:

glClear(GL_DEPTH_BUFFER_BIT);
